SUN2000-8/10K-LC0
Mã sản phẩm: SUN2000-8/10K-LC0
Giá bán: Liên hệ
Thông tin sản phẩm
- Hãng sản xuất Huawei
- Xuất xứ thương hiệu Huawei Technologies
- Xuất xứ (Made in) China

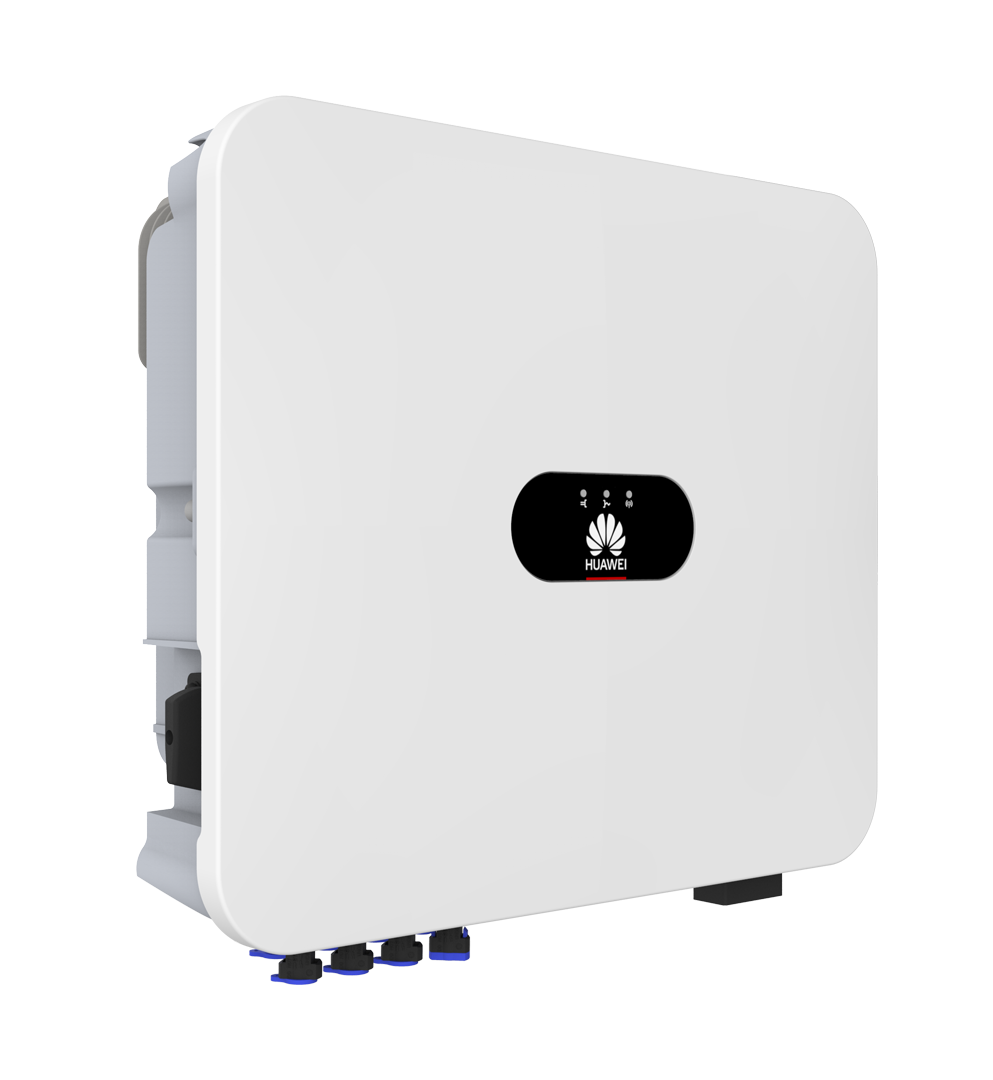

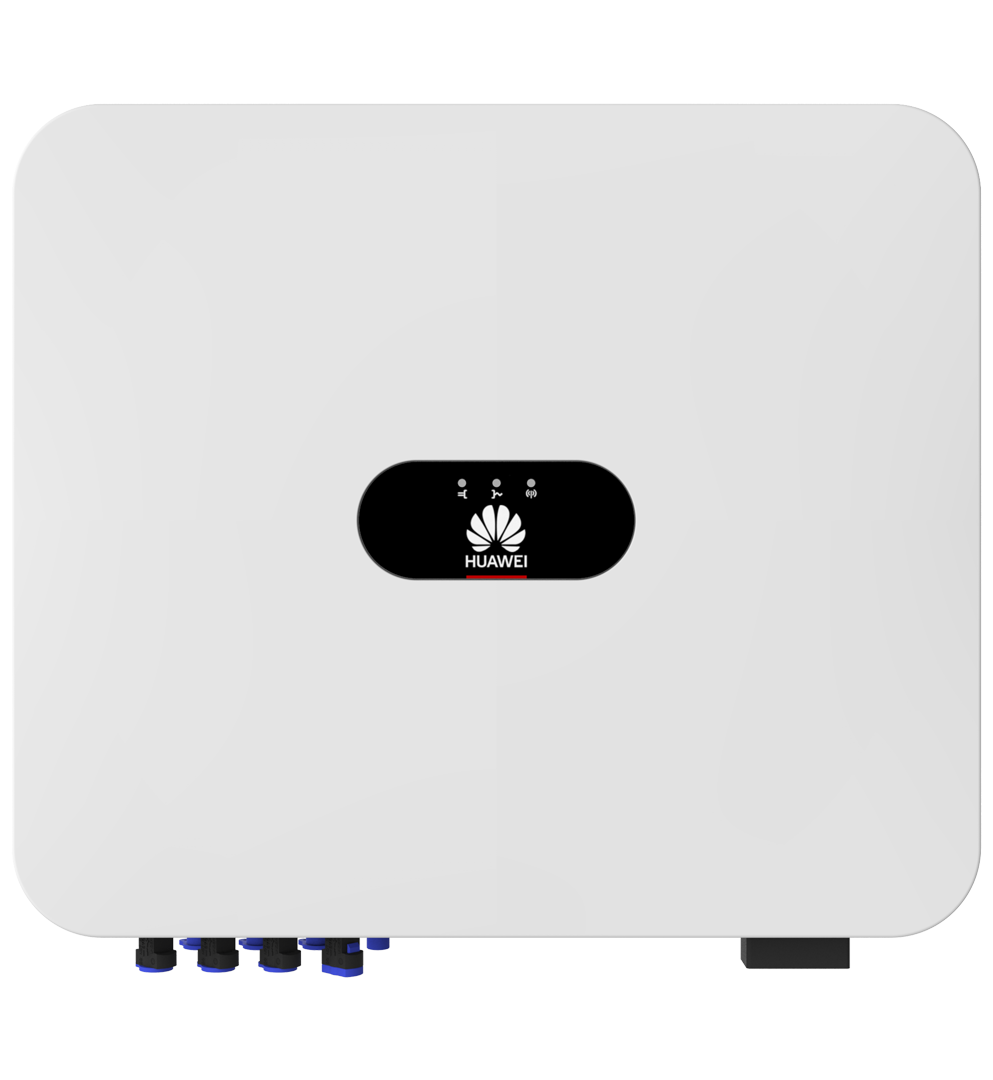

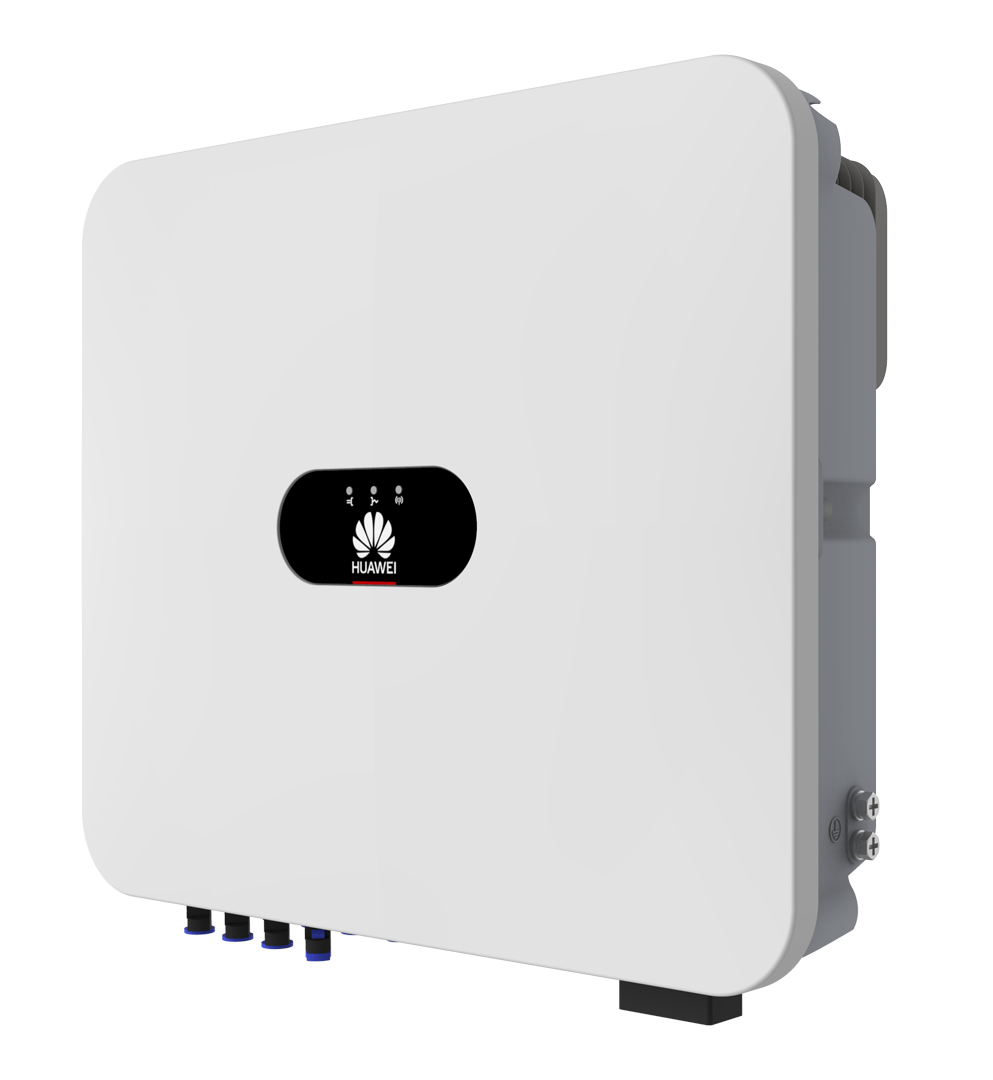

Biến tần 1 pha Huawei 8kW and 10 kW
| Technical Specification | SUN2000-8K-LC0 | SUN2000-10K-LC0 |
| Efficiency | ||
| Max. efficiency | 98.1% | |
| European weighted efficiency | 97.5% | |
| Input (PV) | ||
| Recommended max. PV power | 12,000 Wp | 15,000 Wp |
| Max. input voltage | 600 V | |
| Startup voltage | 50 V | |
| MPPT operating voltage range | 40–560 V | |
| Rated input voltage | 360 V | |
| Max. input current per MPPT | 16 A | |
| Max. short-circuit current | 20 A | |
| Max. number of inputs | 3 | |
| Number of MPP trackers | 3 | |
| Input (DC Battery) | ||
| Compatible battery | LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 | |
| Operating voltage range | 350–560 V DC | |
| Max. operating current | 25 A | |
| Max. charge power | 8,000 W | 10,000 W |
| Max. discharge power | 8,000 W | 10,000 W |
| Output (On Grid) | ||
| Grid connection | Single-phase | |
| Rated output power | 8,000 W | 10,000 W |
| Max. apparent power | 8,800 VA | 10,000 VA |
| Rated output voltage | 220 V AC/230 V AC/240 V AC, L/N+PE | |
| Max. output current | 40.0 A | 45.5 A |
| Rated AC grid frequency | 50 Hz/60 Hz | |
| Adjustable power factor | 0.8 leading ... 0.8 lagging | |
| Max. total harmonic distortion | ≤ 3% | |
| Backup power output | Yes (via Smartguard-63A-S0) | |
| Features & Protection | ||
| Anti-islanding protection | Yes | |
| DC reverse polarity protection | Yes | |
| Insulation monitoring | Yes | |
| DC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |
| AC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |
| Residual current monitoring unit | Yes | |
| AC overcurrent protection | Yes | |
| AC short-circuit protection | Yes | |
| AC overvoltage protection | Yes | |
| Over-heat protection | Yes | |
| Arc fault protection | Yes | |
| Battery charging from grid | Yes | |
| General Data | ||
| Operating temperature range | –25°C to +60°C (–13°F to +140°F) | |
| Relative operating humidity | 0%–100% RH | |
| Operating altitude | 0–4000 m (Derated above 2000 m) | |
| Cooling | Natural convection | Smart Air Cooling |
| Display | LED indicators; integrated WLAN + FusionSolar app | |
| Communication | RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional), EMMA | |
| Weight | 14.5 kg | 15 kg |
| Dimensions (W x H x D) (incl. mounting plate) | 425 mm x 376.5 mm x 150 mm | |
| Degree of protection | IP66 | |
| Optimizer Compatibility | ||
| Compatible optimizer | SUN2000-450W-P2, SUN2000-600W-P | |
| Standards Compliance (More Available Upon Request) | ||
| Certificates | IEC62109-1, IEC62109-2, EN 61000-6 series , EN 62920 EMC, EN 55011 EMC, ETSI EN 301-489-1 EMC, ETSI EN 301 489-17 EMC, EN 61000 3-11, EN 61000 3-12, IEC61000 2-2 | |
| Grid connection standards | ABNT16149/16150:2013, NRS 097-2-1, PEA, MEA | |
